IP65 Protection Class High Voltage Stackable Solar Battery LifePO4 Lithium Battery Pack

Product Categories

Amosolar Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: IP65 Protection Class High Voltage Stackable Solar Battery LifePO4 Lithium Battery Pack
Brand: Amosolar
Price: 2 USD

Battery Type : LiFePO4

Model Number : AMO 10K_HV-T1

Brand Name : Amosolar

Output Power Range : 10~20 kWh

System Type : Stackable

Communication Port : CAN, RS232, RS485, CAN, RS232, RS485

Protection Class : IP65

Grid connection : Off grid, Hybrid grid

Energy : 10.24kWh-25.6kWh

Installation Mode : Stackable

Dimension : 630*185*955

IP Grade : IP65

Type : Split

Cycle life : >6000 Cycles

Certification : UN38.3,MSDS,IEC62619,CE,UL1973,UL2054

Design life : 10+Years

OEM/ODM : Acceptable

MOQ : 2 sets

Price : $2,094.00/sets 2-49 sets

Contact Now

Specification

MODEL	AMO 10K_HV-T1	AMO 15K_HV-T1	AMO 20K_HV-T1	AMO 25K_HV-T1
Electrical Characteristics
Rate voltage(Vdc)	204.8	307.2	409.6	512
Rate capacity(AH)	50	50	50	50
Energy storage(KWH)	10.24	15.36	20.48	25.6
Cycle life	＞6000 cycles @80% DOD, 0.5C
Months self discharge	≤2%
Charge/ Discharge standard
Max. Charge/Discharge current(A)	50
Voltage Range(VDC)	180-228	270-340	350-450	440-560
Enviornment
Charge temperature	0 ℃ to 55℃ @60±25% Relative Humidity
Discharge temperature	-20 ℃ to 55℃ @60±25% Relative Humidity
Storage temperature	-20℃ to 55 ℃ @60±25% Relative Humidity
Mechanical
IP class	IP65
Material system	LiFePO4
Case Type	Stand Stack
Dimensions LWH(mm)	630185955	6301851300	6301851650	6301852000
Weight(Approx)(kg)	120	170	220	268
Communication
Protocol(Optional)	CANBus/RS485/RS232
Monitoring	Bluetooth/ WLAN Optional
Certificates
Pack	UN38.3, MSDS
Cell	UN38.3, MSDS, IEC62619, CE, UL1973, UL2054

About Us

Packaging & Delivery

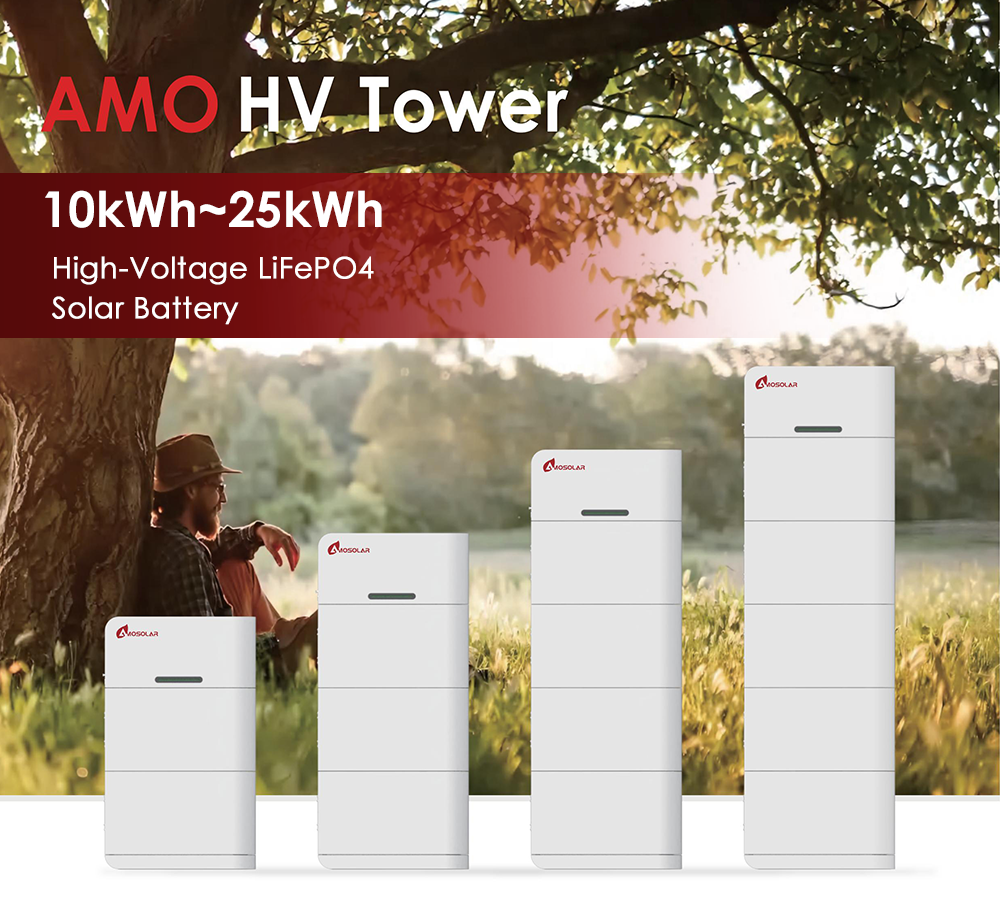

IP65 Protection Class High Voltage Stackable Solar Battery LifePO4 Lithium Battery Pack Images
